Auto Splice Dual Unwinder (ASDU)
Auto Splice Dual Unwinder (ASDU)
The Label-Aire Auto Splice Dual Unwinder with Festoon is engineered to greatly improve your productivity by eliminating time consuming change-overs.

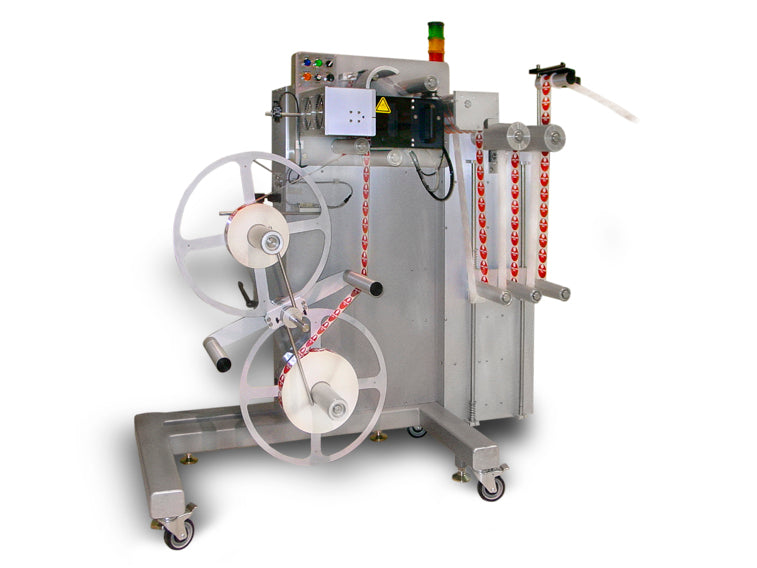

The Label-Aire Auto Splice Dual Unwinder (ASDU) with Festoon is a high-speed servo drive, PLC controlled, continuous feed unit designed to roll up to your production line and improve line efficiency with minimum operator effort. The ASDU features speeds up to 5,000 inches (127 m) per minute and comes equipped with dual 20 inch (508 mm) unwinds. The ASDU’s label sensor and DC servo ensure tight and accurate label splicing. A variety of label sizes can be handled (for example, promotional and coupon labels) by the ASDU and is compatible with all Label-Aire labelers as well as other brands of labelers.
Wide Compatibility
- High Speed
Improve Efficiency
Machine Specifications
Machine Specifications
Speed:
Accuracy: N/A
Dimensions
Width: 28" (711 mm)
Length: 63.7" (1618 mm)
Height: 60.8" (1544 mm)
Weight:
Requirements
Electrical:
Air: .5 cu ft (152 cu cm)/splice @ 80 psi
Label Specifications
Label Specifications
Label
Web Width: 0.625" - 39" (16 mm - 991 mm)
Label Length: 0.625" - 39" (0.5 mm - 991 mm)
Roll Stock
Max OD:
Core: 3" (76 mm)
Guides
Guides
Parts Catalog: View Here
