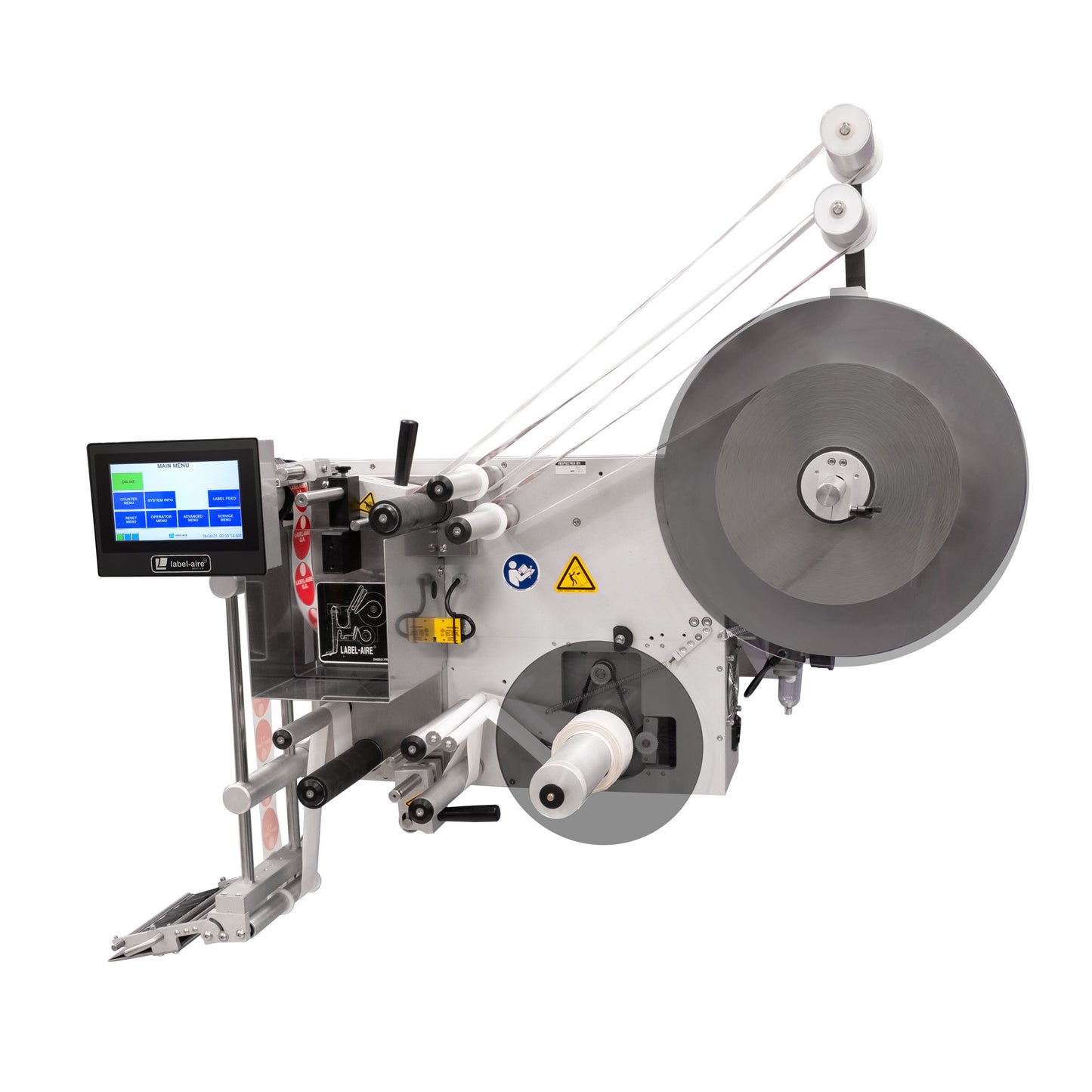

3135-TS Wipe-On Label Applicator

3135-TS Wipe-On Label Applicator

Speeds of up to 3,500 inches (88.9 m) of web per minute make the Model 3135-TS an ideal choice for demanding applications requiring high speed and precision. Advanced features include Automatic Speed Following (ASF) which allows product surface profiling, ensuring wrinkle-free labeling on even the most difficult product shapes and label materials (optional encoder required). Zero Downtime Labeling allows your production to continue without costly interruptions. Product/label queuing and missing label compensation virtually eliminate unlabeled products or missing lot and expiration codes.

  • Left or Right Handed
  • User-Friendly Controls
  • Apply Labels on All Sides

Machine Specifications

Speed: 3,500" (88.9m) / min
Accuracy: +/- 1/32" (.8mm)

Dimensions
Width: 27.07" (688 mm)
Length: 43.62" (1108 mm)
Height: 39.23" (996 mm)
Weight: 180 lbs (81.6 kg)

Requirements
Electrical: 115 Volts AC 60 Hz 3 Amps, 220 Volts AC 50 Hz optional
Air: Not required

Label Specifications

Label
Web Width: 1.00" - 7.13" (25 mm - 181 mm)
Label Length: 0.5" - 39" (13 mm - 991 mm)

Roll Stock
Max OD: 20" (508 mm)
Core: 3" (76 mm), 6" w/ Core Adapter

Guides

Manual: View Here
Spare Parts Catalog: View Here
