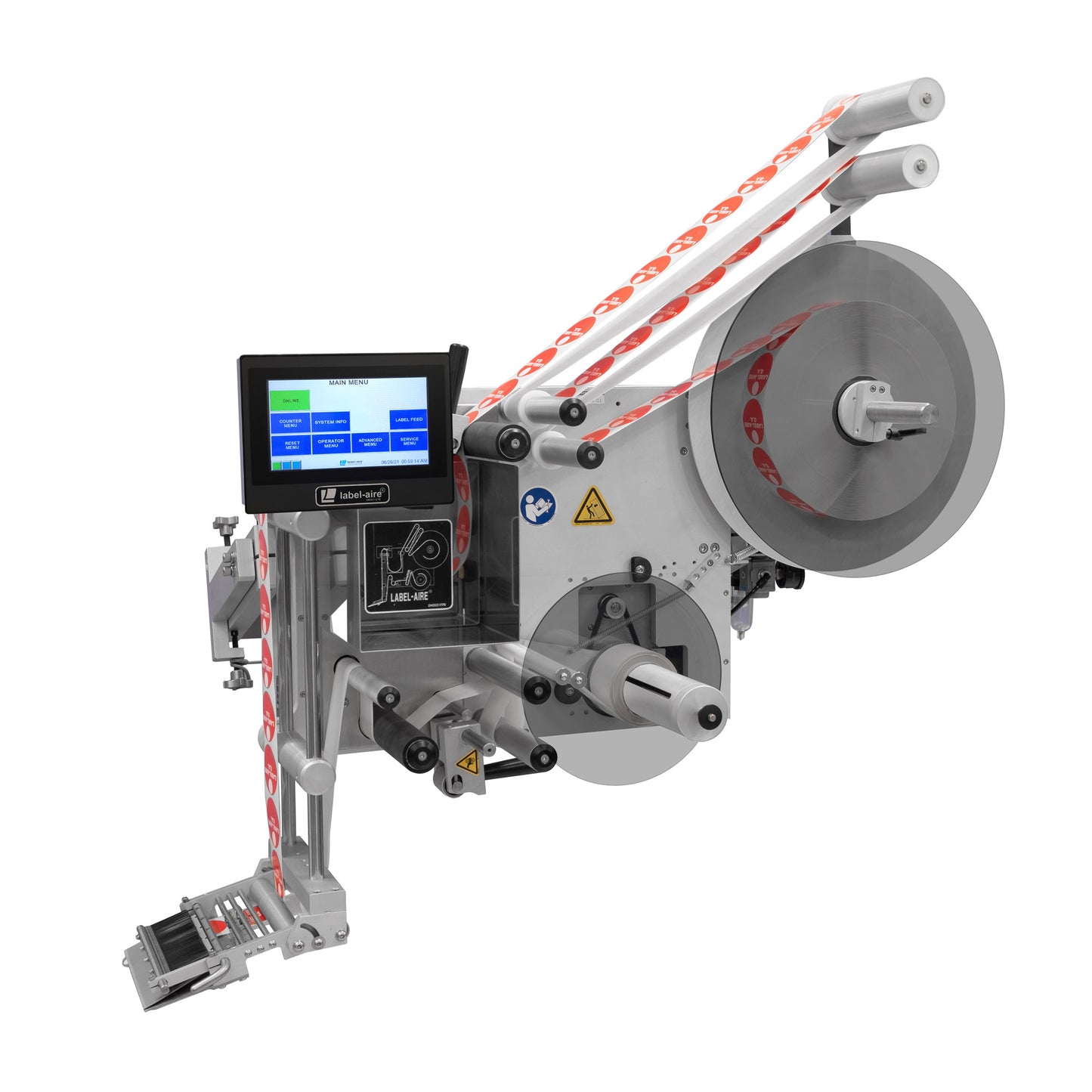

3125-TS Wipe-On Label Applicator

3125-TS Wipe-On Label Applicator

The Model 3125-TS Wipe-On Label Applicator delivers on its promise of speed, accuracy, and ease of use. That translates into lower operating costs and increased productivity for your business. Speeds up to 2,500 inches (63.5 m) of web per minute make the Model 3125-TS an ideal choice for demanding applications requiring high speed and precision. Advanced features include Automatic Speed Following (ASF) which allows product surface profiling, ensuring wrinkle-free labeling on even the most difficult product shapes and label materials (optional encoder required). Zero Downtime Labeling allows your production to continue without costly interruptions. Product/label queuing and missing label compensation virtually eliminate unlabeled products or missing lot and expiration codes.

  • Left or Right Handed
  • User-Friendly Controls
  • Apply Labels on All Sides

Machine Specifications

Speed: 2,500" (63.5m) / min
Accuracy: +/- 1/32" (.8mm)

Dimensions
Width: 25.89" (658 mm)
Length: 39.21" (996 mm)
Height: 34.66" (880 mm)
Weight: 160 lbs (72.6 kg)

Requirements
Electrical: 115 Volts AC 60 Hz 3 Amps, 220 Volts AC 50 Hz optional
Air: Not required

Label Specifications

Label
Web Width: 1.00" - 7.13" (25 mm - 181 mm)
Label Length: 0.5" - 39" (13 mm - 991 mm)

Roll Stock
Max OD: 16" (406 mm), 20" w/ Powered Rewind
Core: 3" (76 mm), 6" w/ Core Adapter

Guides

Manual: View Here
Spare Parts Catalog: View Here
