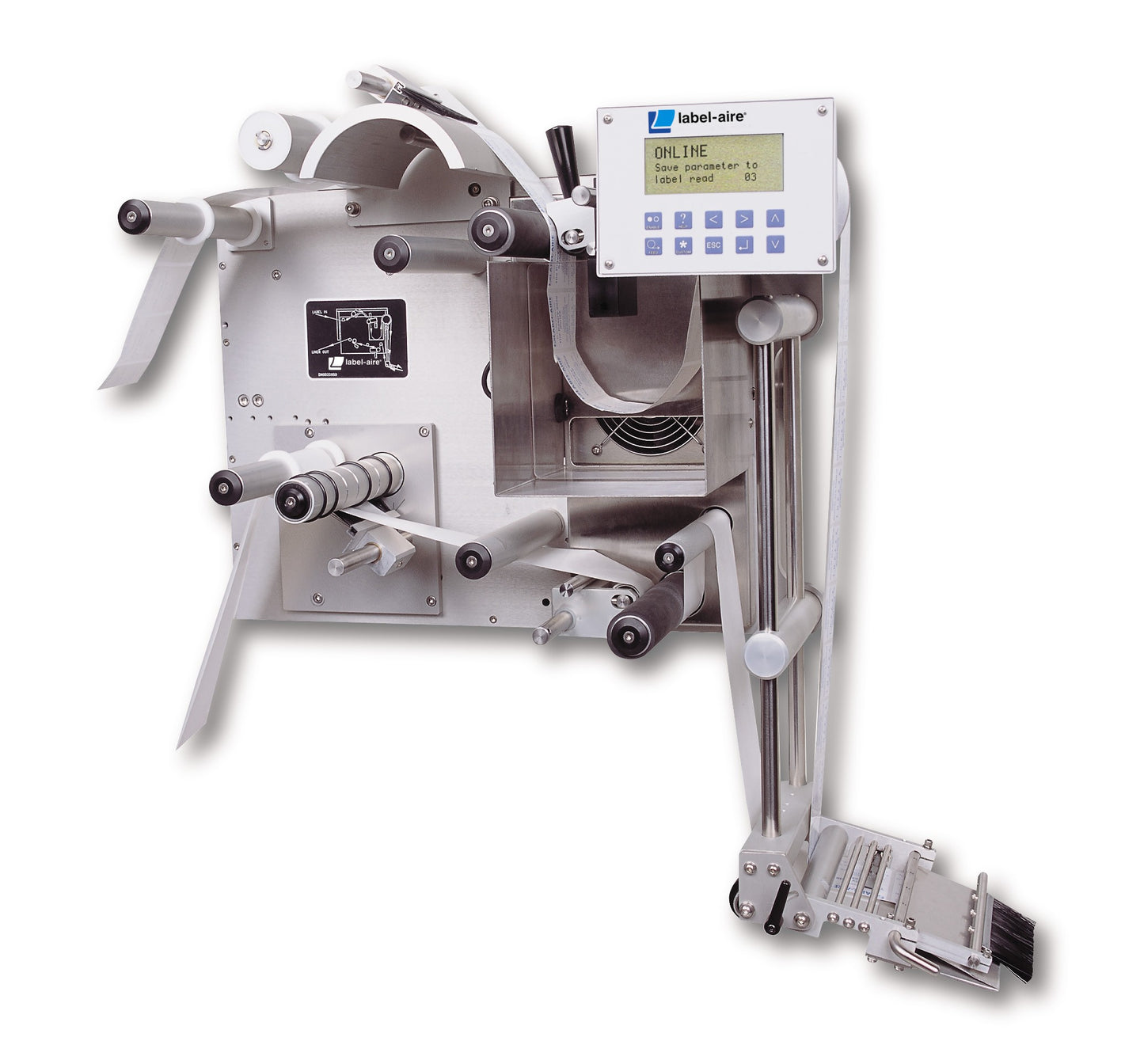

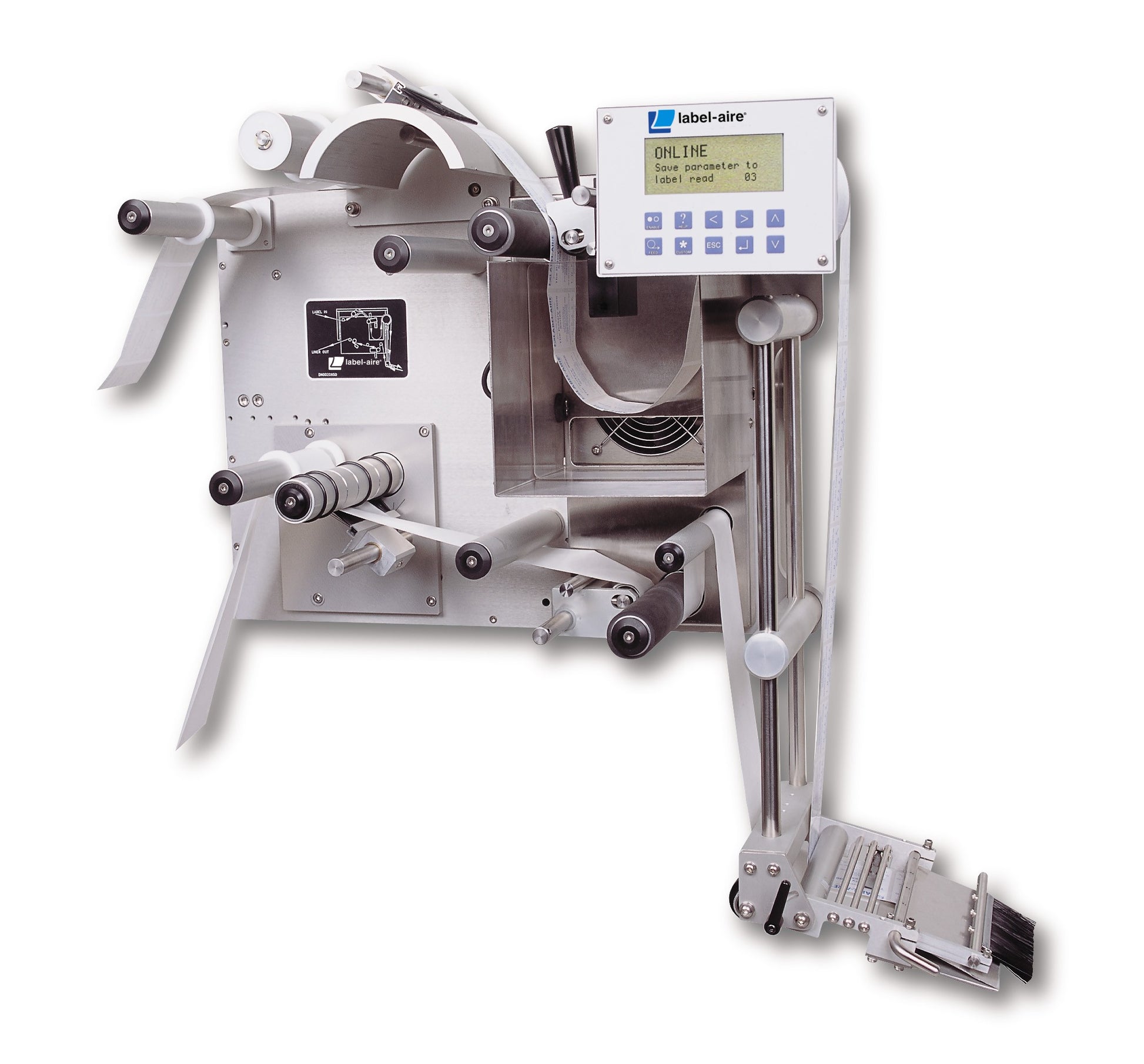

3155-TS Wipe-On Primary Applicator

3155-TS Wipe-On Primary Applicator

Speeds of up to 5,000 inches (127 m) of web per minute make the Model 3135 an ideal choice for demanding applications requiring high speed and precision. Advanced features include Automatic Speed Following (ASF) which allows product surface profiling, ensuring wrinkle-free labeling on even the most difficult product shapes and label materials (optional encoder required). Zero Downtime Labeling allows your production to continue without costly interruptions. Product/label queuing and missing label compensation virtually eliminate unlabeled products or missing lot and expiration codes.

  • Left or Right Handed
  • User-Friendly Controls
  • Apply Labels on All Sides

Machine Specifications

Speed: 5,000" (127m) / min
Accuracy: +/- 1/32" (.8mm)

Dimensions
Width: 31.4" (798 mm)
Length: 26.6" (676 mm)
Height: 28.6" (726 mm)
Weight: 170 lbs (77.1 kg)

Requirements
Electrical: 115 Volts AC 60 Hz 5 Amps, 220 Volts AC 50 Hz optional
Air: Not required

Label Specifications

Label
Web Width: 1.00" - 7.50" NSDU / 8.00" ASDU (25 mm - 191 mm NSDU / 203 mm ASDU)
Label Length: 0.5" - 39" (13 mm - 991 mm)

Roll Stock
Max OD: N/A
Core: N/A

Guides

Manual: View Here
Spare Parts Catalog: View Here
