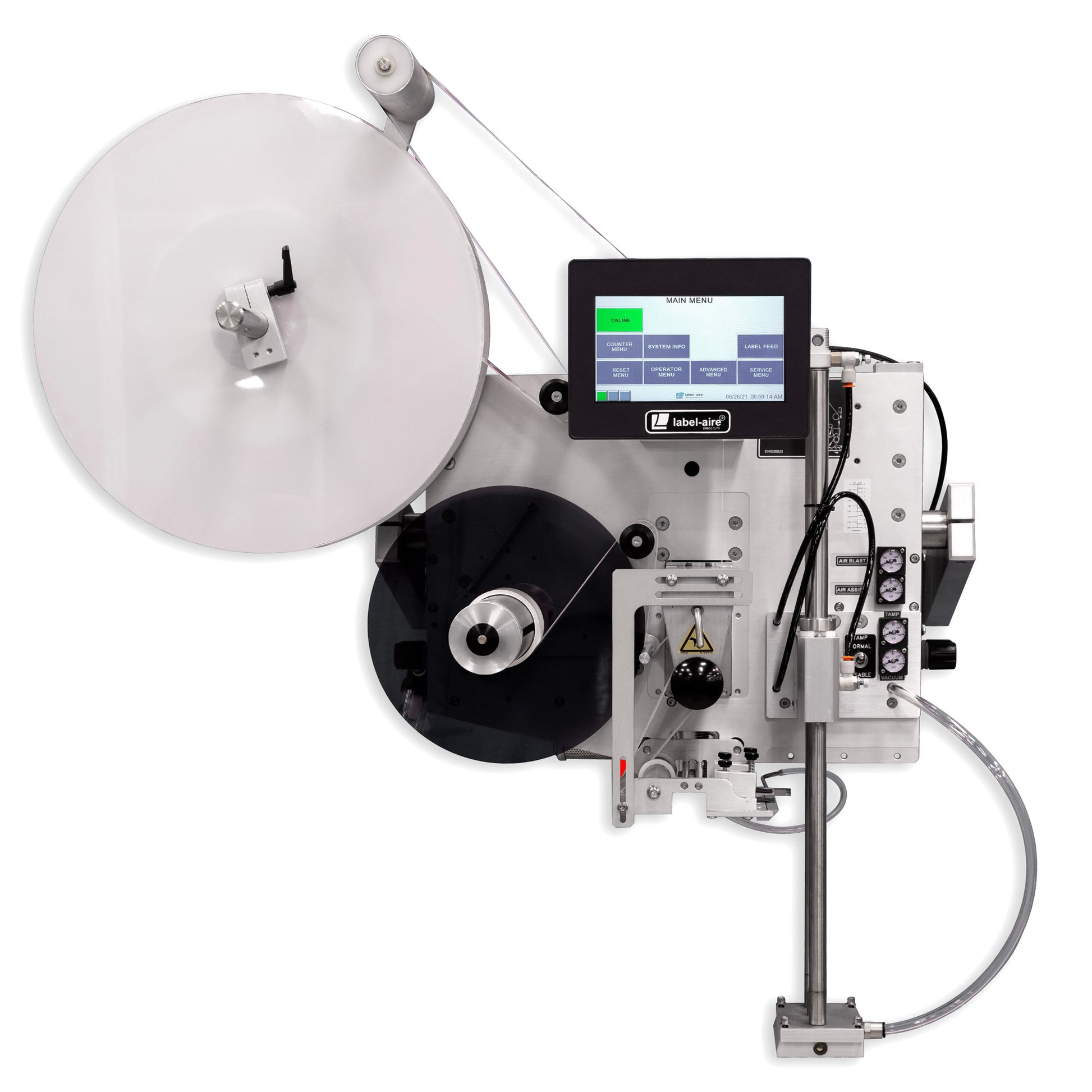

3114-TS Tamp-Blow Primary Applicator

The Label-Aire Model 3114-TS is designed for high-speed tamp-blow labeling applications. It features velocity compensation technology and a heavy-duty stepper motor for precise label placement and can apply labels on the top, side, or bottom of products.

Left or Right Handed
User-Friendly Controls
Apply Labels on All Sides

Machine Specifications

Speed: Up to 1,500" (38.1m) / min (Standard)
Up to 2,000" (50.8m) / min with Smart Powered Rewind
Accuracy: +/- 1/32" (.8mm)

Dimensions
Width: 25.91" (658 mm)
Length: 34.78" (883 mm)
Height: 26.96" (685 mm)
Weight: 140 lbs (63.5 kg)

Requirements
Electrical: 115 Volts AC 60 Hz 3 Amps, 220 Volts AC 50 Hz optional
Air: 4 cfm at 90 - 110 psi
